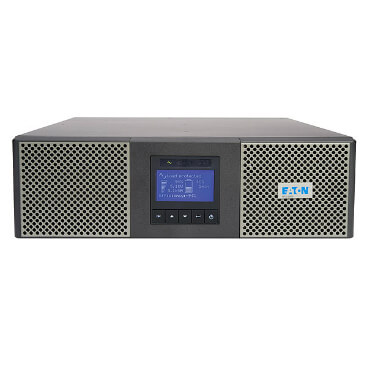

9PX5K-6K_front9PX5K-6K_front

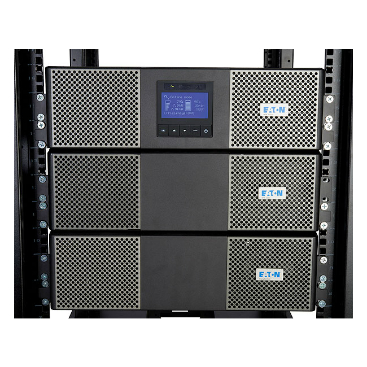

9PX11_withTransformer_Rack_front9PX11_withTransformer_Rack_front

UPS 9PX 8KVA 3:1 R/T

Liên hệ

9PX 8KVA/7,2KW 3:1 R/T, 6U with rack mounting Kit
On-line double conversion with Power Factor Correction (PFC) system,
Input voltage 380/400/415 3:1,
Output voltage/THDU 200/208/220/230/240V, Input frequency range/THDI 40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%, Efficiency Up to 94% in Online mode, 98% in Hi-Efficiency mode, Typical backup times at 50 and 70% load 13/9min, 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation, Approvals CE, CB report (TUV), UL (1:1 version)

Mã: 9PX 8KVA Danh mục: , Từ khóa: ,
  • Mô tả
  • Đánh giá (0)

Mô tả sản phẩm

9PX 8KVA/7,2KW 3:1 R/T, 6U with rack mounting Kit
On-line double conversion with Power Factor Correction (PFC) system,
Input voltage 380/400/415 3:1,
Output voltage/THDU 200/208/220/230/240V, Input frequency range/THDI 40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%, Efficiency Up to 94% in Online mode, 98% in Hi-Efficiency mode, Typical backup times at 50 and 70% load 13/9min, 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation, Approvals CE, CB report (TUV), UL (1:1 version)
