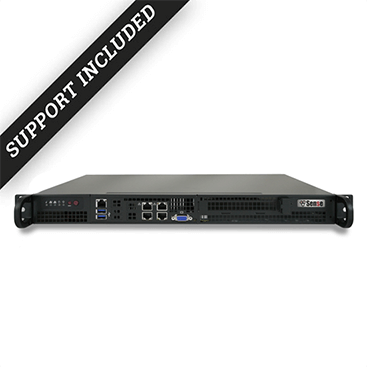

XG-1540 pfSense Security Gateway with 16GB RAM and 120GB SSD (XG-1540-0000)
xg-1540xg-1540
c2758_2c2758_2

XG-1540 pfSense Security Gateway with 16GB RAM and 120GB SSD (XG-1540-0000)

$4,165

SKU: XG-1540-0000 Category:
  • Description
  • Reviews (0)

Product Description

CPU Intel “Xeon-DE” D-1540, FCBGA 1667 supported SoC
CPU Cores Eight Cores, 45W
Networking
Dual LAN via Intel® i350-AM2 1 Gigabit Ethernet
Dual LAN via SoC 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Storage 120GB Intel 535 Series M.2 SSD
Memory 16 GB DDR4 UDIMM
Expansion
1x PCI-E 3.0 x 16 (in x4) AOC Slot
6x SATA3 ports
Other Ports
1x BMC integrated ASPEED AST2400
1x IPMI Port
1x VGA Port
2x Fast UART 16550 Serial Port (1 rear, 1 header)
USB Ports 2x USB 3.0 ports
 LED
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Information LED (temp., status)
Enclosure 19″ 1U Rack Mount – CSE-505-203B
Form Factor 1U 1.7″x17.2″x9.8″
Cooling 200W Low-noise PS with PFC: Active CPU fan, 40mm chassis fan
 Power
1x SATA DOM power connector
100-240V, 50-60Hz, 2.6 Amp MAX
AC Inlet: IEC320-C6 (3 PIN)
Power Cord: NEMA 5-15P to IEC320-Cxx
Environmental
10°C to 35°C Operating Temp
8% to 90% Operating Relative Humidity (non-condensing)
Power Consumption ?W (idle)
Certifications FCC, CE, RoHS, UL
